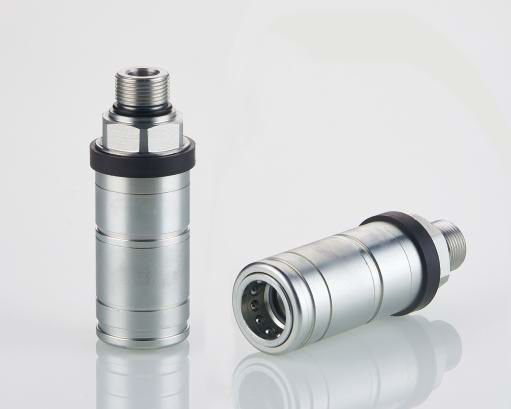

Name: CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-205
Availability: InStock

집 > 상품 > 액체 고속 커플링 >

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

원래 장소:

중국

브랜드 이름:

carterberg

인증:

IATF16949

모델 번호:

CB-205

저희와 연락

인용 을 요청 하십시오

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

제품 세부 사항

유형:

ISO 7241A

재료:

아연도금강철, 스테인리스강

크기:

1/4''-1''

정격 압력:

UP 2900 PSI 밸런스 (20 MPA)

실란트 재료:

NBR (표준), Viton, EPDM (선택 사항)

연결:

플러그와 소켓

밸브:

볼 / 포펫

교환:

Parker 6600, 더 빠른 ANV, Stucchi A 시리즈 등과 호환됩니다.

지불 및 배송 조건

최소 주문 수량

협상

가격

협상 가능

포장 세부 사항

판지 상자

배달 시간

7-20 일

지불 조건

L/C, D/A, D/P, T/T, Western Union

공급 능력

5000 ~ 200000 PC/월

CB-VVS Steel thread locked type chrome plating hydraulic quick coupling

가장 좋은 가격 을 구하라

CB-VF Steel Hydraulic Quick Coupling Poppet Valves Oil & Construction Equipment

가장 좋은 가격 을 구하라

CB-10M Series Hydraulic Quick Couplings - ISO 7241-A Compliant & Leak-Proof for Industrial Use

가장 좋은 가격 을 구하라

ISO Series Hydraulic Quick Couplings - Durable & Leak-Proof for Construction & Industrial Use

가장 좋은 가격 을 구하라

저희와 연락

86-021-37214610

지금 연락하세요

제품 설명

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

The CB-205 Series hydraulic quick couplings are engineered for heavy-duty applications in construction, forestry, and hydraulic machinery. Featuring a double-acting sleeve for one-handed push-to-connect operation, they ensure efficient coupling even in clamp or bulkhead mounts. Equipped with poppet valves to prevent uncoupled leakage, these couplings maintain automatic flow within rated pressure for uninterrupted performance. Critical hardened components enhance durability, while ISO5675 compliance guarantees reliability. Compatible with PARKER 4250 and FASTER CPV-CNV Series, they offer seamless integration into existing systems. Ideal for demanding industrial environments, these couplings prioritize safety, ease of use, and robust performance.

Technical Specifications

BODY SIZE	Rated Pressure (PSI)	Rated Flow (GPM)	Temperature range(std seals)	Standard seal material
1/2"	3000	12	-20℃~+80℃	NBR

Dimensional Overview

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry 0

Body Size	PARTNO.	LS	Φ D	HS	A	T
1/2"	CB-205	111	38	32	23.8	BSP1/2 NP T1/2
