원래 장소:
중국
브랜드 이름:
carterberg
인증:
IATF16949
모델 번호:
CB-PVM/PVS

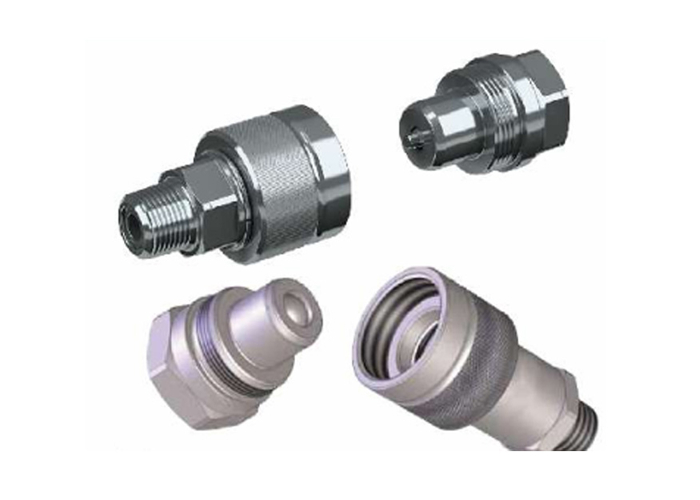

PVM/PVS 70 MPa Thread-to-Connect Hydraulic Couplings | ISO 14540 High Pressure Cone Valve Connectors
The PVM/PVS Series Thread-to-Connect Hydraulic Couplings are engineered for ultra-high pressure systems up to 70 MPa (700 bar). Designed in compliance with ISO 14540, these couplings feature a cone or ball valve system ensuring secure, leak-free performance under demanding conditions. Made from durable carbon steel with Zn-Fe (Cr III) plating, they offer excellent corrosion resistance. With BSP or NPT thread options and standard NBR seals (FKM or EPDM available), these couplings allow connection under residual pressure on both sides. Ideal for heavy-duty applications in agriculture, construction, special vehicles, oil drilling, and metallurgical equipment.
| Nominal size | Working pressure | Rated flow(ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
| PVM/PVS | ISO | Mpa | l/min | l/min | Male(Mpa) | Female(Mpa) | Coupled(Mpa) | cc |
| 06 | 6.3 | 70 | 5 | 10 | 270 | 200 | 220 | 0.2 |
| 10 | 10 | 70 | 9 | 20 | 280 | 300 | 330 | 0.6 |
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
