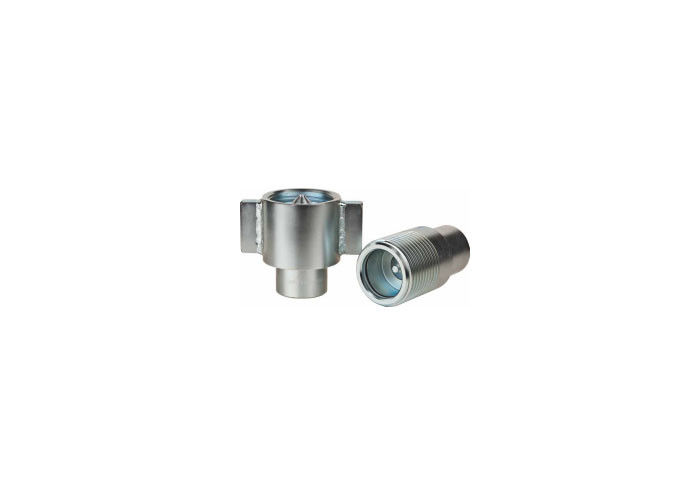

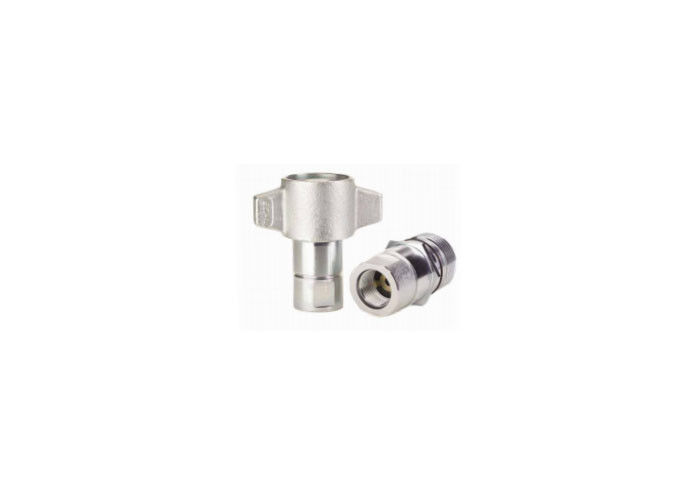

1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling

1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling
1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling 1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling 1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling

큰 이미지 :  1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling

제품 상세 정보:
원래 장소: 상하이, 중국
브랜드 이름: carterberg
인증: IATF16949
모델 번호: CB-5
결제 및 배송 조건:
최소 주문 수량: 협상
가격: 협상 가능
포장 세부 사항: 카튼
배달 시간: 7~20일
지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온
공급 능력: 5000~20000 pc / 달

1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling

설명
소재: 강철 종류: 결합
압력: 750psi 사용: 수압 및 유체 전달
이름: 스레드 커플링 크기: 1"
정격유량: 50GPM 실링 소재: NBR
강조하다:

750psi Threaded Quick Connect

,

1'' Threaded Quick Connect

,

NBR hydraulic quick release coupling

Thread together design using wing or hex nut allows connection pressures 750psi quick coupling



1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling



CB-5-G Seriesi s available in either wing nut or hex nut configurations for ease of assembly and disassembly. (For higher pressure applications and additional size)The Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi.



Features

  1. Steel flange available for bulkhead mounting
  2. * back-up rings along with secondary metal-to-metal sealing contact provides high impulse capability up to 5,000 psi operating pressure
  3. Tubular valve and sleeve construction for low fluid loss and air inclusion
  4. Thread together design using wing or hex nut allows connection and disconnection against pressures up to 750 psi
  5. Acme threads prevent galling and provide ease of connection

1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling 01 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling 1



Body Size PARTNO. Thread A B HEX
1" CB-S8S-5FN-G 1-11 1/2 4.98 4.50 -
1" CB-S8S-5FN-G 1-11 1/2 4.98 2.81 1.62
1" CB-P8S-5FN-G 1-11 1/2 4.40 2.11 1.75






Our Services:



1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
