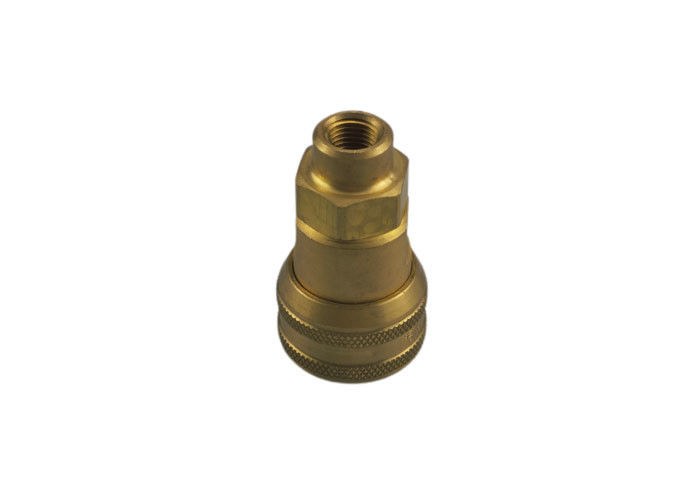

Agricultural Machine Hydraulic 0.5 Inch ISO 5675 Coupler

Agricultural Machine Hydraulic 0.5 Inch ISO 5675 Coupler
Agricultural Machine Hydraulic 0.5 Inch ISO 5675 Coupler Agricultural Machine Hydraulic 0.5 Inch ISO 5675 Coupler

큰 이미지 :  Agricultural Machine Hydraulic 0.5 Inch ISO 5675 Coupler

제품 상세 정보:
원래 장소: 상하이, 중국
브랜드 이름: carterberg
인증: IATF16949
모델 번호: CB-4
결제 및 배송 조건:
최소 주문 수량: 협상
가격: 협상 가능
포장 세부 사항: 카튼
배달 시간: 7~20일
지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온
공급 능력: 5000~20000 pc / 달
상세 제품 설명
소재: 강철 표준: ISO5675
크기: 1/4-1 정격 압력: 3000-5000
정격유량: 3-50 온도: -20~+120
신청서: 유압 호환성: PARKER4000 시리즈와 FASTER NV/NS 시리즈
강조하다:

0.5'' ISO 5675 Coupler

,

3000psi ISO 5675 Coupler

,

ISO5675 steel coupler

ISO5675 Steel Ball Valves Type socket and plug Hydraulic Quick Coupling

  • Dependable ball-locking mechanism holds the mating halves together.
  • Socket and plug are precision machined from solid bar stock.
  • CB-4 series conforms to the standard of ISO5675.
  • Compatible with PARKER 4000 Series and FASTER NV/NS Series.

CB-4 Series brings to the industry a proven design for use on construction equipment, forestry Equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.

Standard Materials

  • zinc-plated steel
  • Seals: NBR, Viton, EPDM

Features

  1. Poppet valves available to prevent uncoupled leakage.
  2. Ball valves available for rugged dependability in heavy-duty hydraulic applications within rated working pressure.
  3. Hard, chrome alloy balls are used for valving, It be loaded on the valve seat by the springs.
  4. The valve provides a metal-to-metal seal between the ball and coined seat.
  5. Critical parts are hardened for durability.
  6. Agricultural Machine Hydraulic 0.5 Inch ISO 5675 Coupler 0
Body Size PARTNO. Thread A B HEX
1/4" CB-S2S-4FN 1/4-18 53.5 27.6 19
1/4" CB-S2S-4FG 1/4-19 53.5 27.6 19
3/8" CB-S3S-4FN 3/8-18 63 34 24
3/8" CB-S3S-4FG 3/8-19 63 34 24
1/2" CB-S4S-4FN 1/2-14 66.3 38.6 27
1/2" CB-S4S-4FG 1/2-14 66.3 38.6 27
3/4" CB-S6S-4FN 3/4-14 82.5 48.2 34
3/4" CB-S6S-4FG 3/4-14 82.5 48.2 34
1" CB-S8S-4FN 1-11 1/2 96.5 56 41
1" CB-S8S-4FG 1-11 96.5 56 41

Agricultural Machine Hydraulic 0.5 Inch ISO 5675 Coupler 1

Body Size PARTNO. Thread C D E HEX
1/4" CB-P2S-4FN 1/4-18 18.5 12.5 36 19
1/4" CB-P2S-4FG 1/4-19 18.5 12.5 36 19
3/8" CB-P3S-4FN 3/8-18 22 13 40 24
3/8" CB-P3S-4FG 3/8-19 22 13 40 24
1/2" CB-P4S-4FN 1/2-14 27 16 43.5 27
1/2" CB-P4S-4FG 1/2-14 27 16 43.5 27
3/4" CB-P6S-4FN 3/4-14 32 19 53.5 34
3/4" CB-P6S-4FG 3/4-14 32 19 53.5 34
1" CB-P8S-4FN 1-11 1/2 38 21 63 41
1" CB-P8S-4FG 1-11 38 21 63 41
